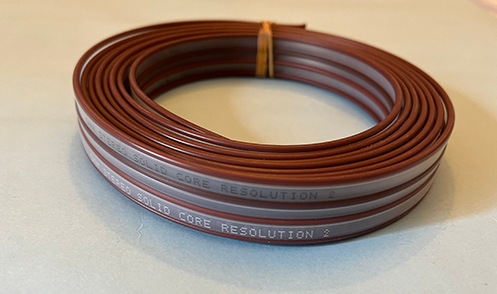

NEW : DNM Stereo Solid Core Resolution 2 speaker cable is made in a compact four conductor stereo ribbon which maintains a constant spacing between the four conductors along the cable length.
The constant spacing gives a significant performance advantage because it greatly improves the magnetic performance of the cable.
How To Use DNM 4-conductor Ribbon Cables, with new photos (in a new window).

Full details of Resolution 2 announcement here..

The length Quantity is entered in half metre units.

To order, enter in the Quantity box the length of speaker cable you require, for example to order 5.5 metres of stereo speaker cable, enter "11" (half metres) in the Quantity box.
See the Cable usage/ Length/ Quantity table in this link.

Remember that DNM stereo speaker cable has both the left and right channels in one 4 conductor ribbon, which is designed to be easily separated at the speaker end to enable connection of the two speakers.
Order the number of half metre lengths required to reach the speaker further away from the amplifier.
To order for bi-wiring or bi-amping, order the full 4 conductor ribbon length required for each channel.


Notes which may influence your order selection.

If the amplifier is located one side of the room relative to the speakers.
At the speaker end of the cable separate the DNM ribbon (from 4 conductors to 2 x 2 conductors). Separate back to the point which is halfway between the speakers, to allow connection to both speakers. This method will keep the left and right channel cable lengths equal.
See this illustration.

If unequal cable length per channel is permissible, cut the 2 conductor ribbon shorter on the side nearest to the amplifier, this will give the neatest looking installation.

If the amplifier is located between the two speakers.
If the amplifier is not in the central position between the speakers order the cable length to be long enough to connect the speaker furthest away from the amplifier. You may then want to separate the complete ribbon from 4 conductors to 2 x 2 conductors but we strongly recommend that at least half a metre of the ribbon at the amplifier end is kept together in 4 conductor form to retain the cable directionality.
See this illustration.


Please read the more detailed cable preparation information in this link before preparing the DNM stereo cable for use.

All Cable dimensions and cross-sections.

Full Resolution 2 announcement details here..

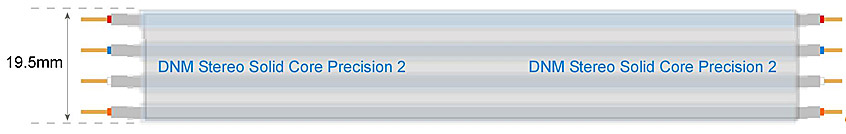

DNM Stereo Solid Core Precision 2 speaker cable is made in a very small four conductor stereo ribbon which maintains a constant spacing between the four conductors along the cable length.
The constant spacing gives a significant performance advantage because it greatly improves the magnetic performance of the cable..
How To Use DNM 4-conductor Ribbon Cables, with new photos (in a new window).

The length Quantity is entered in half metre units.

To order, enter in the Quantity box the length of speaker cable you require, for example to order 5.5 metres of stereo speaker cable, enter "11" (half metres) in the Quantity box.
See the Cable usage/ Length/ Quantity table in this link.

Remember that DNM stereo speaker cable has both the left and right channels in one 4 conductor ribbon, which is designed to be easily separated at the speaker end to enable connection of the two speakers.
Order the number of half metre lengths required to reach the speaker further away from the amplifier.
To order for bi-wiring or bi-amping, order the full 4 conductor ribbon length required for each channel.


Notes which may influence your order selection.

If the amplifier is located one side of the room relative to the speakers.
At the speaker end of the cable separate the DNM ribbon (from 4 conductors to 2 x 2 conductors). Separate back to the point which is halfway between the speakers, to allow connection to both speakers. This method will keep the left and right channel cable lengths equal.
See this illustration.

If unequal cable length per channel is permissible, cut the 2 conductor ribbon shorter on the side nearest to the amplifier, this will give the neatest looking installation.

If the amplifier is located between the two speakers.
If the amplifier is not in the central position between the speakers order the cable length to be long enough to connect the speaker furthest away from the amplifier. You may then want to separate the complete ribbon from 4 conductors to 2 x 2 conductors but we strongly recommend that at least half a metre of the ribbon at the amplifier end is kept together in 4 conductor form to retain the cable directionality.
See this illustration.

Please read the more detailed cable preparation information in this link before preparing the DNM stereo cable for use.

All Cable dimensions and cross-sections.

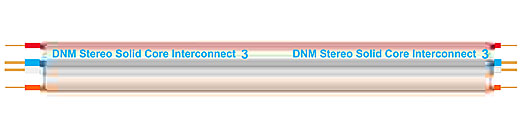

DNM's new third generation stereo interconnect cable has ground (earth return) conductors with only one third of the resistance
of the earlier DNM stereo interconnects, now using 0.5mm diameter outer signal conductors
and 0.65mm diameter inner ground conductors.
It still retains the same ultra-low capacitance and distributed inductance combined with a clean magnetic performance, characteristics which have enabled DNM’s cable designs to achieve uniquely accurate music reproduction for over 32 years!

DNM’s latest ribbon cable sets the conductor spacing and the Q of the cable structure to give very accurate tonal rendition to any music signal it carries.
How To Use DNM 4-conductor Ribbon Cables, with new photos (in a new window).

Seven reasons why you should buy DNM cables direct from DNM Design
1. DNM invented these cables, so we know the best way to handle them.
2. DNM provide detailed cable preparation information.
3. DNM can suggest cable build methods to suit your system and offer system advice.
4. DNM offer the ideal connecting plugs.
5. Cable routing advice is available from DNM.
6. Balanced XLR cables need a special cable build, advice is available from DNM.
7. Only DNM can offer in-cable HFTN filters and plug-in speaker cable HFTNs.


DNM Stereo Solid Core Interconnect 3 cable is ordered and priced in 0.5 metre long stereo lengths to allow the cable length to be specified to within half a metre.
One DNM Stereo Interconnect 3 Cable can connect a stereo signal between two items of equipment, so for one stereo cable you need to order only one run of the DNM ribbon cable.

To order a DNM Stereo cable, enter in the Quantity box the length of cable you require; for example to order 2 metres of cable, enter "4" (half metres) in the Quantity box.

NB : For XLR balanced interconnects, TWICE the cable length needs to be ordered, one length foreach channel of the stereo connection e.g. 4 x 0.5 metre lengths for a one metre long balanced XLR stereo interconnect.

See the Cable usage/ Length/ Quantity table in this link.

Using the Cable Components section
If you wish to buy the cable alone and fit the plugs yourself, simply enter the quantity of half metre cable lengths required for each stereo cable run here, add it to your cart and then order the plugs separately on the CC 2 Plugs page.

If you prefer to order the cable with the plugs fitted ready to use, first order the length of the cable, then order the plugs and then use the CC 3 Cable Building Service page to order the fitting of those plugs onto the cable.

The Cable Components section allows the ordering of more complex Interconnect cables like DNM Din-to-phono cables or DNM Y leads for use with DNM amplifiers. If you have any questions about ordering please press the "contact us" button at the top of this page to send an email.


See the different cable sizes and cross-sections here.

Full interconnect cable usage information in this PDF

Shielded Stereo Interconnect cable is ordered and priced in 0.5 metre long stereo lengths to allow the cable length to be specified to within half a metre.
One Shielded Stereo Interconnect Cable can connect a stereo signal between two items of equipment, so for one stereo cable you need to order only one run of the Shielded cable.

DNM now offer a two channel shielded coaxial unbalanced cable, with an optional extra earth conductor to ground the tonearm which can be ordered with an email. This cable is specified to make the connection between the vinyl record player and the pre-amplifier or integrated amplifier, or any interconnect application of reasonable length (up to 7 metres) requiring a shield.

The Cable Specifications:-
Resistance of the 7 signal conductors is 0.14 Ohms per metre.
Resistance of the shield is 0.022 Ohms per metre.
Capacitance is 57pF/Metre:- the cable length can be adjusted to set the load capacitance on a moving magnet cartridge. For example, a 2 metre length of this cable will add an extra 114pF load capacitance to the loading built into the RIAA amplifier's input.

To order Shielded Stereo Interconnect cables, enter in the Quantity box the length of Interconnect cable you require; for example to order 2 metres of Shielded stereo interconnect cable, enter "4" (half metres) in the Quantity box.

We suggest using one Tonearm DIN plug at the tonearm end of the cable - the phono stage/amplifier end will use a different plug, e.g. a phono plug (Eichmann / DNM) or a DNM DIN plug.

See the Cable usage/ Length/ Quantity table in this link.

Using the Cable Components section
If you wish to buy the cable alone and fit the plugs yourself, simply enter the quantity of half metre cable lengths required for each stereo cable run here, add it to your cart and then order the plugs separately on the CC 2 Plugs page.

If you prefer to order the cable with the plugs fitted ready to use, first order the length of the cable, then order the plugs and then use the CC 3 Cable Building Service page to order the fitting of those plugs onto the cable.

The Cable Components section allows the ordering of more complex Interconnect cables like DNM DIN to phono cables or DNM DIN Y leads for use with DNM amplifiers. If you have any questions about ordering please press the "contact us" button at the top of this page to send an email.
